LogTag TRIX-8 Temperature Data Logger - LogTag Recorders

£0.00
£15.00
Earn0
reward points

Bulk Buy Discounts

Quantity PurchasedPrice
1 - 9£15.00
10 - 24£14.75
25 - 49£14.25
50 +£14.00

Product details

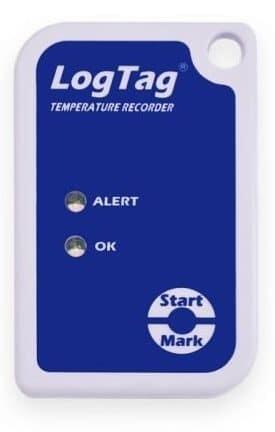

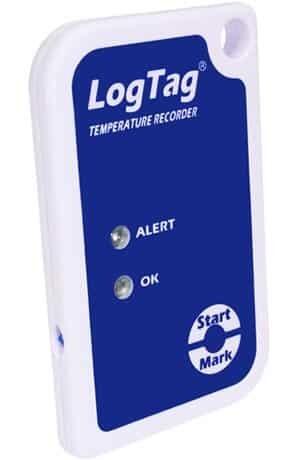

The LogTag TRIX-8 Temperature Data Logger incorporates an external temperature sensor uniquely arranged in a recess in the case. This design protects the sensor from damage but still provides a fast reaction time more associated with remote temperature sensors.

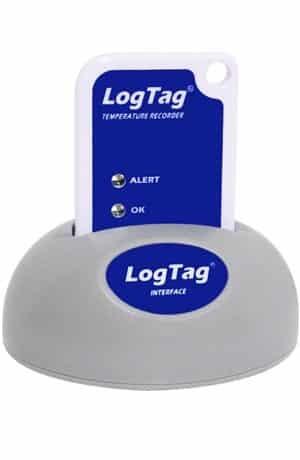

Using the LogTag Interface and LogTag’s freely available companion software LogTag Analyzer, the LogTag is easily set-up for recording conditions including delayed start, sampling interval, number of readings, continuous or fixed number of readings and configuration of conditions to activate the ALERT indicator.

  • Alert indicator – indicates if readings are outside of preset limits
  • OK indicator indicates if still recording and if readings within configured limits
  • Inspection Mark in log by push button Push Button Logging start
  • Fast Download! Takes only seconds to download recordings
  • 'Pre-Start' logging - LogTag can be configured to record even if it has not been started.
  • High performance at low cost
  • Credit card sized case – thin enough to be easily mailed “letter rate”.
  • Real time clock records time; temperature simultaneously
  • Easy to use LogTag Analyzer software that runs on any PC configures LogTag for recording then downloads resulting data for analysis. Data can also be exported to formats compatible with other applications such as Excel
  • Highly reliable and accurate
  • Re-calibration to achieve higher accuracy possible
  • Technical Specification
    Product ModelTRIX-8.
    Sensor Measurement Range-40°C to +85°C (-40°F to +185°F)
    Operating Temperature Range-40°C to +85°C (-40°F to +185°F).
    Storage Temperature Range-30°C to +55°C (-22°F to +131°F).
    Rated Temperature Reading AccuracyBetter than ±0.5°C for -20°C to +40°C. Better than ±0.7°C for -30°C to -20°C and +40°C to +60°C. Better than ±0.8°C for +60°C to +85°C. Better than ±0.9°C for -40°C to -30°C. Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below.Accuracy figures can be improved by recalibration.
    Rated Temperature Reading ResolutionLess than 0.1°C for -40°C to +40°C. Less than 0.2°C for +40°C to +80°C. Less than 0.4°C for +80°C to +85°C. Please see the Rated Native Resolution chart below.LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®.
    Sensor Reaction TimeTypically less than 5 minutes (T90) in moving air (1m/s).
    Recording Capacity8031 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging.
    Sampling IntervalConfigurable from 30 seconds to several hours.
    Logging Start OptionsPush button start or specific date & time. Optional start delay of up to 18hours.
    Recording IndicationFlashing ‘OK’ indicator / flashing ‘ALERT’ indicator.
    Download TimeTypically less than 5 seconds for full memory (8031 readings), depending on computer or readout device used.
    EnvironmentalIP65 (roughly equivalent to NEMA 4).
    Power Source3V Li-Mg Battery.
    Battery Life2 – 3 years of normal use (based on 15 minute logging, download data monthly).
    Real Time ClockBuilt-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
    Size86mm(H) x 54.5mm(W) x 8.6mm(T).
    Weight33g.
    Case MaterialPolycarbonate.
    Compliance and CertificationsFDA CFR21 Part 11FCC EMC DirectiveCE EMC DirectivesConforms to RoHSTÜV SÜD tested and compliant to EN12830:1999Pre-qualified WHO PQS E006/006
  • Product Downloads & Brochures

    For product information please click the links below.


    To download the LogTag Analyzer Free Software please click here
